SK10/16 Collet Chuck

1. Strong stability, solid and durable
2. High precision and high consumption power
3. Complete models, support customization
4. Different processing parts and equipment, different product specifications and sizes, and different prices are welcome to consult.
5. Polishing treatment, bright surface
6. It has elastic expansion and contraction function and is easy to install.

Product Detail

Suitable for high-speed processing and widely favored by users of high-speed and high-precision machine tools. High accuracy and improved grasp by 60%. SK collet is a link clamping tool between the tool holder and the tool. It is a universal collet for high-speed machine tools and high-precision and high-speed machining.Can support drill bits, taps, reamers, milling cutters,the convex design of the front end of the SK collet reduces the probability of dust chips flying in

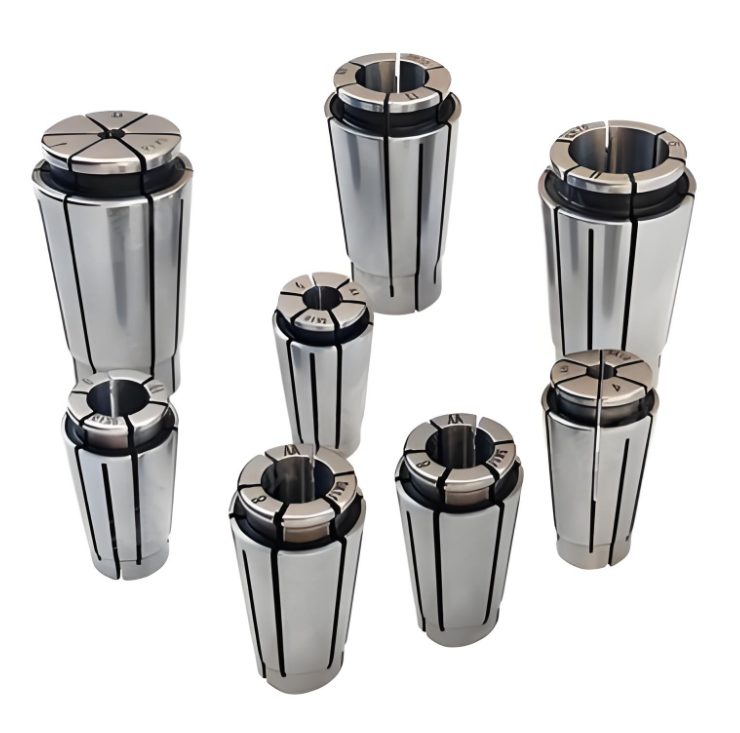

sk collet

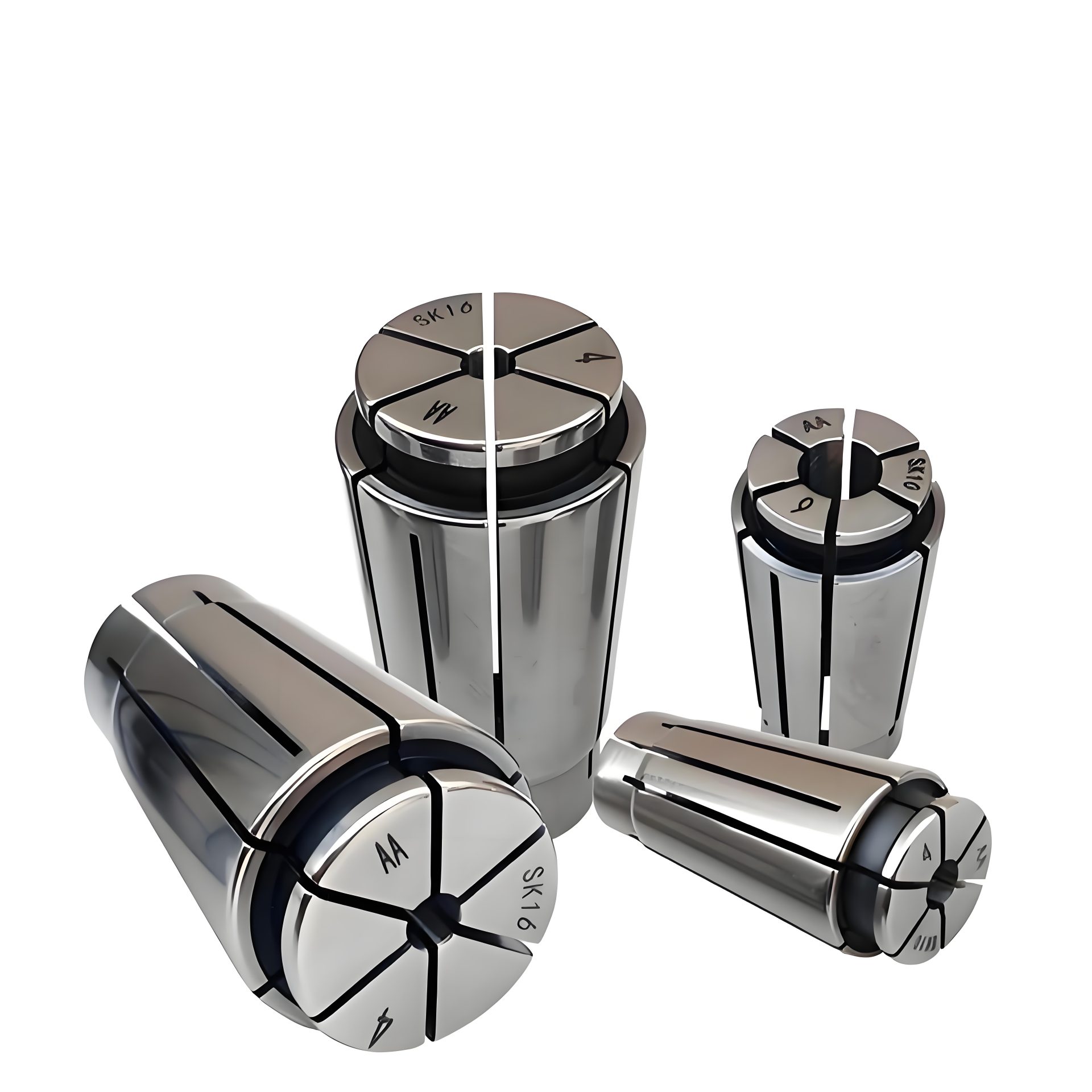

sk16 collet
                                            sk16 collet

SK High-Speed Collet Chuck specification sheet:

Model Model size
SK10 3/4/5/6/7/8/9/10
SK16 3/4/5/6/7/8/9/10/11/12/13/14/15/16

Installation Notes:
1. Put the chuck into the pressure cap, gently turn the circlip, until the eccentric part of the pressure cap is recessed into the circlip groove, push the circlip evenly in the direction of the arrow, and then it can be installed into the pressure cap.
2. Install the clamping arrow and the pressure cap on the chuck body or the machine tool spindle. Clean the cylindrical handle of the tool and install it into the clamping hole. Use a wrench to tighten the pressure cap evenly until the tool is firmly clamped. use.
3. When changing the tool, use a wrench to loosen the pressure cap and take out the chuck and tool, remove the tool, push the circlip in the direction of the arrow to make it withdraw, and then replace it with a circlip of other diameters as needed.
