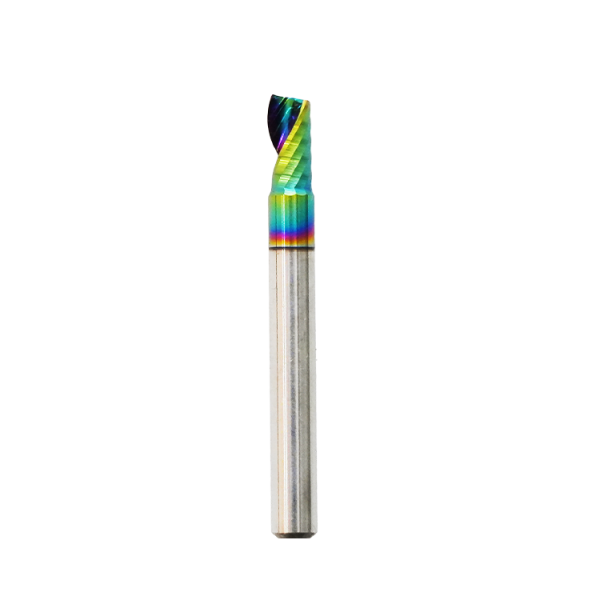

Single Flute End Mill

Material	Tungsten steel/carbide
Whether to support customization	YES
Hrc	58°
Flute	1
OEM & ODM	OK
Suitable for	Aluminum alloy, non-ferrous metals

Product Detail

The main geometric angles of Single Flute End Mill include rake angle, relief angle and rotation angle. These angles have an important impact on cutting efficiency and workpiece surface quality.
, Single Flute End Mill has increased chip flutes, which helps to improve product processing efficiency and quality, and the colorful coating makes the milling cutter stronger and more durable.

specifications	d1(mm)	L2	d2(mm)	L1(mm)
D13D3.175*38L	1	3	3.175	38
D15D3.175*38L	1	5	3.175	38
D1.56D3.175*38L	1.5	6	3.175	38
D1.58D3.175*38L	1.5	8	3.175	38
D1.512D3.175*38L	1.5	12	3.175	38
D26D3.175*38L	2	6	3.175	38
D210D3.175*38L	2	10	3.175	38
D212D3.175*38L	2	12	3.175	38
D215D3.175*38L	2	15	3.175	38
D217D3.175*38L	2	17	3.175	38
D3.175838L	3.175	8	3.175	38
D3.175838L	3.175	8	3.175	38
D3.1751238L	3.175	12	3.175	38
D3.1751538L	3.175	15	3.175	38
D3.1751738	3.175	17	3.175	38
D3.1752245l	3.175	22	3.175	45
D3.1752550L	3.175	25	3.175	50
D3.1752850L	3.175	28	3.175	50
D3.1753255L	3.175	32	3.175	55
D41245	4	12	4	45
D41545L	4	15	4	45
D41745	4	17	4	45
D42245L	4	22	4	45
D42550L	4	25	4	50
D42850L	4	28	4	50
D43255L	4	32	4	55
D61750L	6	17	6	50
D62250L	6	22	6	50
D62550L	6	25	6	50
D63260L	6	32	6	60
D82565L	8	25	8	65
D83265L	8	32	8	65
D103265L	10	32	10	35
