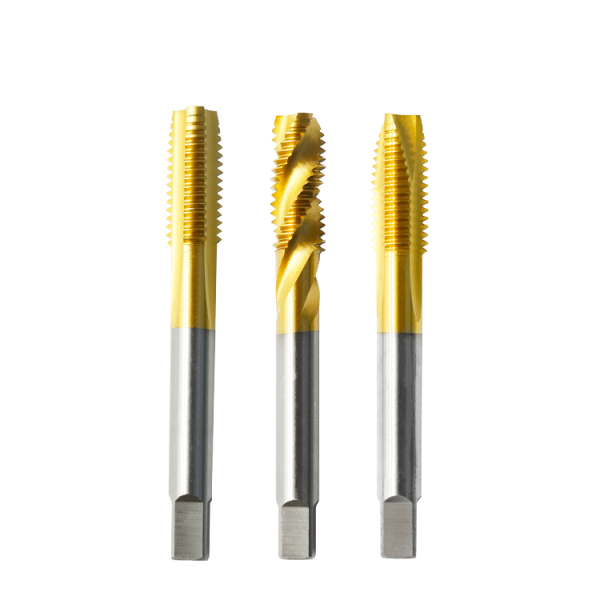

Material: Carbide/High Speed Steel
Tool Flute Type: Straight
Coating: titanium alloy
1. Strong heat dissipation and good through hole effect
2. It can be tapped to the bottom of the hole without leaving any residue, and the chips can be discharged smoothly and easily enter the bottom, and the cutting effect is good.
3. The thread tap is fully ground, with higher wear resistance and lower friction coefficient.
Model | Specification | Recommended threaded bottom hole |
CJ006 | M2*0.4 | 1.6 |
M2.5*0.45 | 2.05 | |
M3*0.5 | 2.5 | |
M4*0.7 | 3.3 | |
M5*0.8 | 4.2 | |
M6*1.0 | 5 | |
M8*1.25 | 6.8 | |
M10*1.5 | 8.5 | |
M12*1.75 | 10.3 | |
M14*2 | 12 | |
M16*2 | 14 | |
M18*2.5 | 15.5 | |
M20*2.5 | 17.5 |
