| Material | Tungsten steel/carbide |
| Whether to support customization | YES |
| Hrc | 56° |
| Flute | 4 |
| OEM & ODM | OK |
| Suitable for | steel |

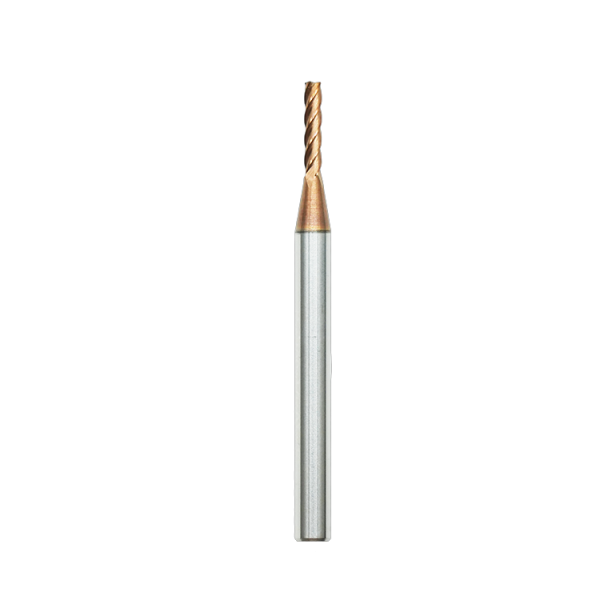

In some complex mechanical structures, there are areas that may be difficult to reach with standard length milling cutters. The Extended Long Flute Flat End Mill can extend into these hard-to-reach areas for processing. Extended milling cutters can be used for deep hole machining, especially when a long tool is required to reach the bottom of the hole
4 Flute Flat End Mill Hrc56° specification table：
| Specifications | Flute Diameter(mm) | Flute Length(mm) | Shank Diameter(mm) | Overall Length(mm) |
| D1*5*D4*50L | 1 | 5 | 4 | 50 |
| D1*6*D4*50L | 1 | 6 | 4 | 50 |
| D1.5*6*D4*50L | 1.5 | 6 | 4 | 50 |
| D1.5*8*D4*50L | 1.5 | 9 | 4 | 50 |
| D2*8*D4*50L | 2 | 9 | 4 | 50 |
| D2*10*D4*50L | 2 | 10 | 4 | 50 |
| D2*12*D4*50L | 2 | 12 | 4 | 50 |
| D3*15*D4*50L | 3 | 15 | 4 | 50 |
| D4*12*50L | 4 | 12 | 4 | 50 |
| D6*18*50L | 6 | 18 | 6 | 50 |
| D8*24*60L | 8 | 24 | 8 | 60 |
| D10*30*75L | 10 | 30 | 10 | 75 |
| D12*35*75L | 12 | 35 | 12 | 75 |
| D10*50*100L | 10 | 50 | 10 | 100 |
| D12*50*100L | 12 | 50 | 12 | 100 |
| D16*50*100L | 16 | 50 | 16 | 100 |
