| Material | Tungsten steel/carbide |
| Whether to support customization | YES |
| Hrc | 55°/56°/58°/60/°62°/65° |
| Flute | 4 |
| OEM & ODM | OK |
| Suitable for | Steel OR aluminum |
(HRC55°/56°/58°/60°/62°/65°)4Flute milling cutter Coating and picture:
| HRC | Coating | picture |
| 55° | ancient steel |  |

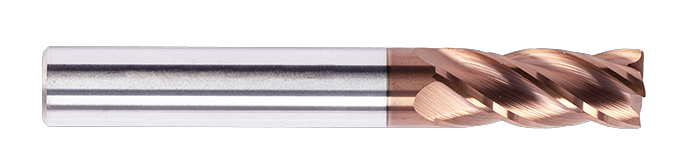

| 56° | Nano ancient steel | |

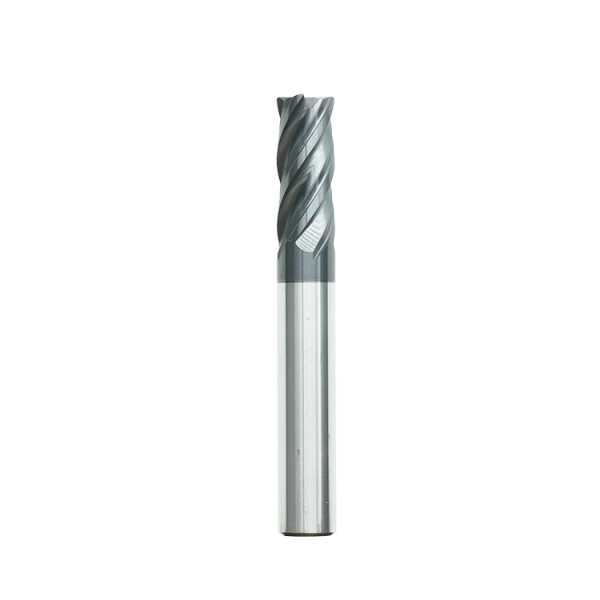

| 58° | Nano black |  |
| 60° | nano blue |  |

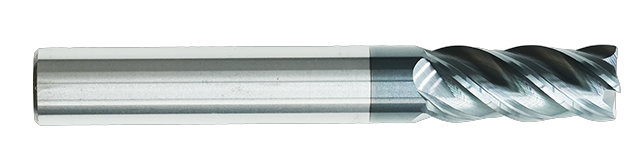

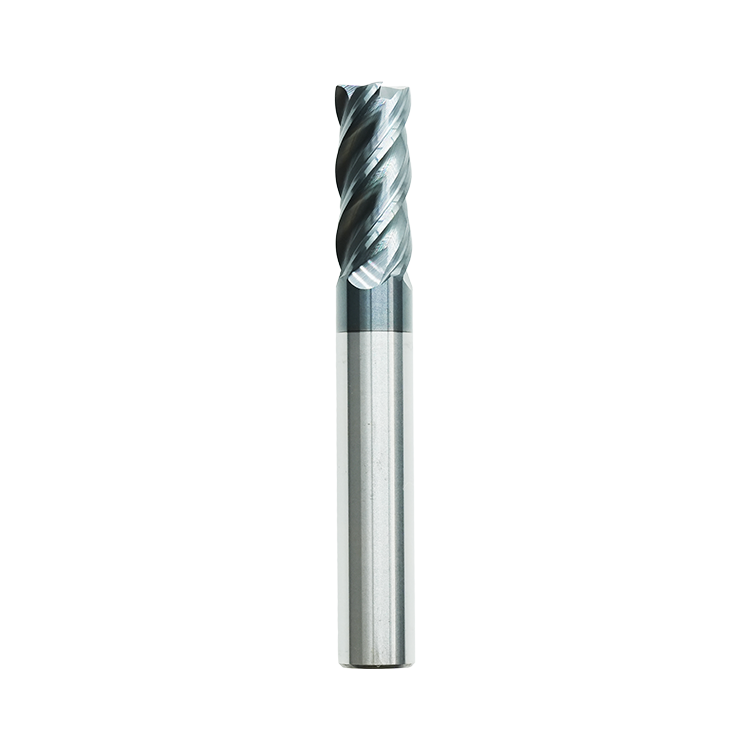

| 62° | Nano black | |

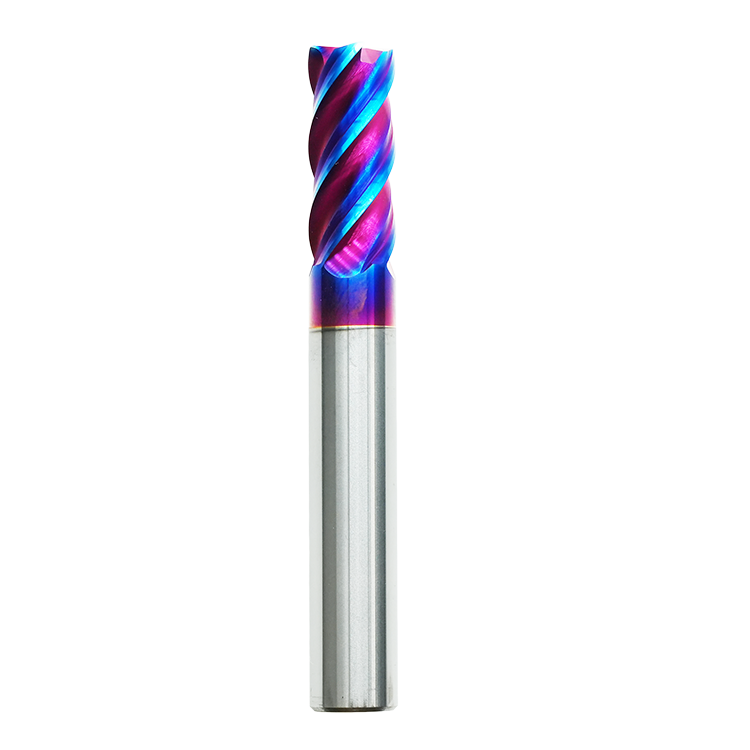

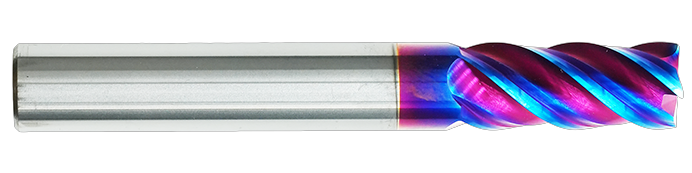

| 65° | nano blue | |
(HRC55°/56°/58°/62°/65°)4Flute milling cutter Specification table
d1=Flute Diameter d2=Shank Diameter L1=Overall Length L2=Flute Length
| Specifications | Flute Diameter(mm) | Flute Length(mm) | Shank Diameter(mm) | Overall Length(mm) |
| D1*3*D4*50L | 1 | 3 | 4 | 50 |
| D1.5*4.5*D4*50L | 1.5 | 4.5 | 4 | 50 |
| D2*6*D4*50L | 2 | 6 | 4 | 50 |
| D2.5*7.5*D4*50L | 2.5 | 7.5 | 4 | 50 |
| D3*9*D4*50L | 3 | 9 | 4 | 50 |
| D3*9*D3*50L | 3 | 9 | 3 | 50 |
| D3*12*D3*75L | 3 | 12 | 3 | 75 |
| D3*15*D3*100L | 3 | 15 | 3 | 100 |
| D3.5*10*D4*50L | 3.5 | 10 | 4 | 50 |
| D4*10*D4*50L | 4 | 10 | 4 | 75 |
| D4*16*D4*75L | 4 | 16 | 4 | 75 |
| D4*20*D4*100L | 4 | 20 | 4 | 100 |
| D5*13*D6*50L | 5 | 13 | 6 | 50 |
| D5*13*D5*50L | 5 | 13 | 5 | 50 |
| D5*20*D5*75L | 5 | 20 | 5 | 75 |
| D5*25*D5*100L | 5 | 25 | 5 | 100 |
| D6*15*D6*50L | 6 | 15 | 6 | 50 |
| D6*24*D6*75L | 6 | 24 | 6 | 75 |
| D6*30*D6*100L | 3 | 60 | 6 | 100 |
| D8*20*D8*60L | 8 | 20 | 8 | 60 |
| D8*30*D8*75L | 8 | 30 | 8 | 75 |
| D8*35*D8*100L | 8 | 35 | 8 | 100 |
| D10*25*D10*75L | 10 | 25 | 10 | 75 |
| D10*40*D10*100L | 10 | 40 | 10 | 100 |
| D12*30*D12*751 | 12 | 30 | 12 | 75 |
| D12*45*D12*100L | 12 | 45 | 12 | 100 |
| D14*45*D14*100L | 14 | 45 | 14 | 100 |
| D16*45*D16*100L | 16 | 45 | 16 | 100 |
| D18*45*D18*100L | 18 | 45 | 18 | 100 |
| D20*45*D20*100L | 20 | 45 | 20 | 100 |
| D6*45*D6*150L | 6 | 45 | 6 | 150 |
| D8*50*D8*150L | 8 | 50 | 8 | 150 |
| D10*60*D10*150L | 10 | 60 | 10 | 150 |
| D12*60*D12*150L | 12 | 60 | 12 | 150 |
| D14*70*D14*150L | 14 | 70 | 14 | 150 |
| D16*75*D16*150L | 16 | 75 | 16 | 150 |
| D18*75*D18*150L | 18 | 75 | 18 | 150 |
| D20*75*D20*150L | 20 | 75 | 20 | 150 |
| D2*6*D2*50L | 2 | 6 | 20 | 150 |
| D25*45*D25*100L | 25 | 45 | 2 | 50 |
