U-Slot Milling Cutter

Material	Tungsten steel/carbide
Whether to support customization	YES
Hrc	55°/56°
Flute	3/4
OEM & ODM	OK
Suitable for	Aluminum alloy, non-ferrous metals

Product Detail

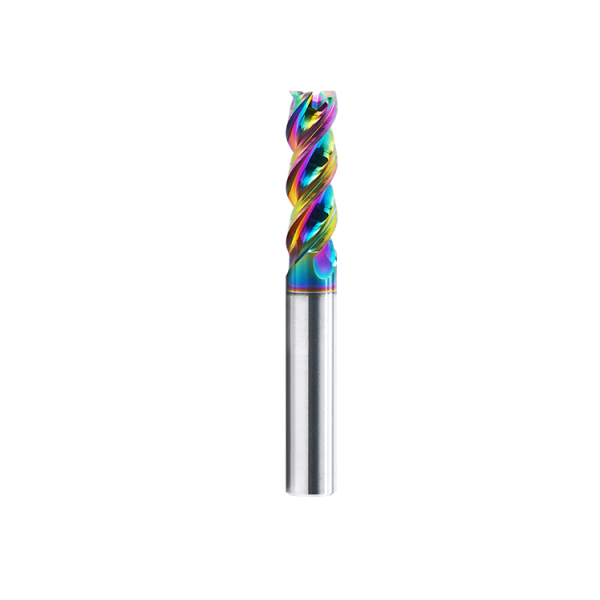

The large cutting U-shaped groove design focuses on cutting and sharp design. It uses 0.6-grain imported WC powder, which is compatible with toughness and wear resistance. The imported target DLC colorful coating has the characteristics of good lubrication and high wear resistance.
Suitable for semi-finishing and rough machining of aluminum alloy, copper alloy and non-ferrous metals.

HRC55°/56°Colorful U-shaped Slot Milling Cutter Specification Sheet：

d1=Flute Diameter d2=Shank Diameter L1=Overall Length L2=Flute Length

specifications	Flute Diameter(mm)	Flute Length(mm)	Shank Diameter(mm)	Overall Length(mm)
D13D4*50L	1	3	4	50
D1.54.5D4*50L	1.5	4.5	4	50
D26D4*50L	2	6	4	50
D2.57.5D4*50L	2.5	7.5	4	50
D39D4*50L	3	9	4	50
D412D4*50L	4	12	4	50
D416D4*75L	4	16	4	50
D420D4*100L	4	20	4	100
D515D6*50L	5	15	6	50
D618D6*50L	6	18	6	50
D624D6*75L	6	24	6	75
D630D6*100L	6	30	6	100
D645D6*150L	6	46	6	150
D824D8*60L	8	24	8	60
D830D8*75L	8	30	8	75
D835D8*100L	8	35	8	100
D850D8*150L	8	50	8	150
D1030D10*75L	10	30	10	75
D1045D10*100L	10	45	10	100
D1060D10*150L	10	60	10	150
D1235D12*75L	12	35	12	75
D1245D12*100L	12	45	12	100
D1260D12*150L	12	60	12	150
D1445D14*100L	14	45	14	100
D1475D14*150L	14	75	14	150
D1645D16*100L	16	45	16	100
D1675D16*150L	16	75	16	150
D2045D20*100L	20	45	20	100
