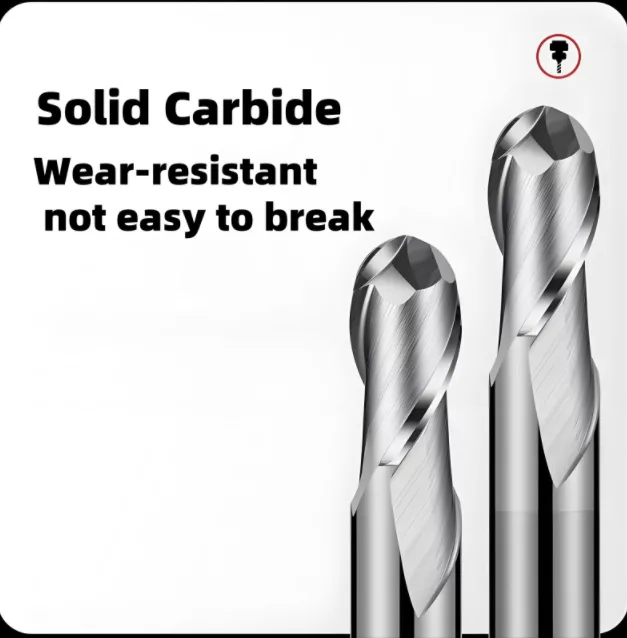

1 8 Ball Nose End Mill

Material	Carbide/Tungsten Steel
Number of Flutes	1/2/3/4
Coating	bright
HRC	55°/56°/58°/60°/62°/65°

Product Detail

Key Features:
✅ Material: High-grade tungsten carbide steel alloy
✅ Application: Ideal for engraving/cutting wood, acrylic, plastic, MDF, and similar materials
✅ Performance: Ultra-long service life + Smooth, burr-free cutting surfaces

Bit Types & Specifications:

Single-Flute Spiral End Mills
- Shank diameter: 3.175mm (1/8")
- Cutting diameter: 3.175mm
- Cutting length: 17mm
- Total length: 38mm
2-Flute Spiral Flat Nose End Mills
- Same dimensions as above

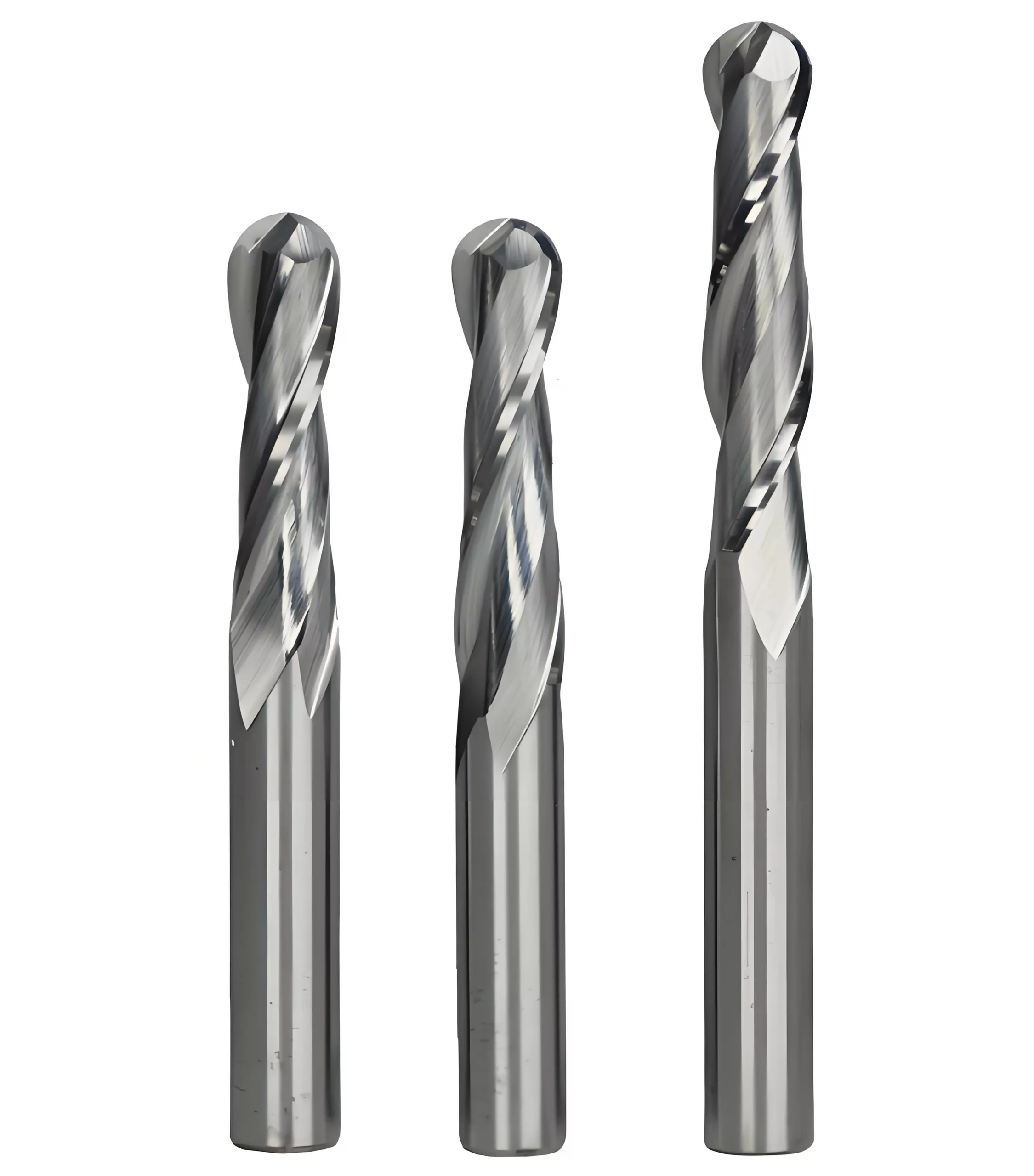

Ball Nose End Mills
- Same dimensions as above
Nano Blue Coated Corn End Mills
- Shank diameter: 3.175mm (1/8")
- Cutting diameter range: 0.8–3.0mm (Available sizes: 0.8/1.0/1.2/1.4/1.6/1.8/2.0/2.2/2.5/3.0mm)
- Cutting length: 17mm
- Total length: 38mm

Compatibility:
⚙️ Fits most desktop CNC machines (e.g., AnoleX CNC, 3018 series, and other brands)
⚠️ Requirement: Use with a 3.175mm (1/8") ER11 collet for optimal performance

Storage & Organization:
📦 Compact, portable plastic case with foam inserts
🔩 Each bit secured in individual compartments to prevent damage

Why Choose This Set?
➤ Versatility: Covers 90% of hobbyist/professional CNC projects
➤ Quality Coating: Nano blue coating reduces friction and heat buildup
➤ Ready-to-Use: Pre-organized for quick access during jobs

Perfect For:

Woodworking enthusiasts
Acrylic/plastic fabricators
Small business prototyping
DIY CNC hobbyists

Upgrade your CNC toolkit with precision-engineered bits designed for efficiency and longevity! 🛠️✨

Note: Always wear safety gear and follow machine manufacturer guidelines during operation.

Other sizes:

specifications	Radius(mm)	Flute Length(mm)	Shank Diameter(mm)	Overall Length(mm)
R0.52D4*50L	0.5	2	4	50
R0.753D4*50L	0.75	3	4	50
R14D4*50L	1	4	4	50
R1.256D4*50L	1.25	6	4	50
R1.56D4*50L	1.5	6	4	50
R1.56D3*50L	1.5	6	3	50
R1.56D3*75L	1.5	6	3	75
R1.56D3*100L	1.5	6	3	100
R1.757D4*50L	1.75	7	4	50
R14D250L2F	1	4	2	50
R28D4*50L	2	8	4	50
R28D4*75L	2	8	4	75
R28D4*100L	2	8	4	100
R2.510D6*50L	2.5	10	5	50
R2.510D5*50L	2.5	10	5	75
R2.510D5*75L	2.5	10	5	75
R2.510D5*100L	2.5	10	5	100
R312D6*50L	3	12	6	50
R312D6*75L	3	12	6	75
R312D6*150L	3	12	6	150
R416D8*60L	3	12	6	100
R416D8*75L	4	16	8	75
R416D8*100L	4	16	8	100
R416D8*150L	4	16	8	150
R520D10*75L	5	20	10	75
R520D10*100L	5	20	10	100
R520D10*150L	5	20	10	150
R624D12*75L	6	24	12	75
R624D12*100L	6	24	12	100
R624D12*150L	6	24	12	150
R728D14*100L	7	28	14	100
R728D14*150L	7	28	14	150
R832D16*100L	8	32	16	100
R832D16*150L	8	32	16	150
R936D18*100L	9	36	18	100
R936D18*150L	9	36	18	150
R1040D20*100L	10	40	20	100
R1040D20*150L	10	40	20	150
