| Material | Solid Carbide |
| Size | Customizable |
| HRC | 45/55/60/65/70 |
| Coating | nano |
| Used for | Steel, aluminum, copper, iron |
1. The fully ground blade is sharp and wear-resistant, and uses excellent nano-coating, which has higher wear resistance and strength.
2.Upgraded new blade design
Adopting excellent new blade shape, smooth surface, not easy to break, enhancing tool rigidity, taking into account the rigidity and chip removal performance of the tool, making the cutting and chip removal of the tool more stable.
SIZE:
| Thread | Pitch | size | Chip flute | Recommended bottom hole | |||
| ISO standard flute | mm |
|

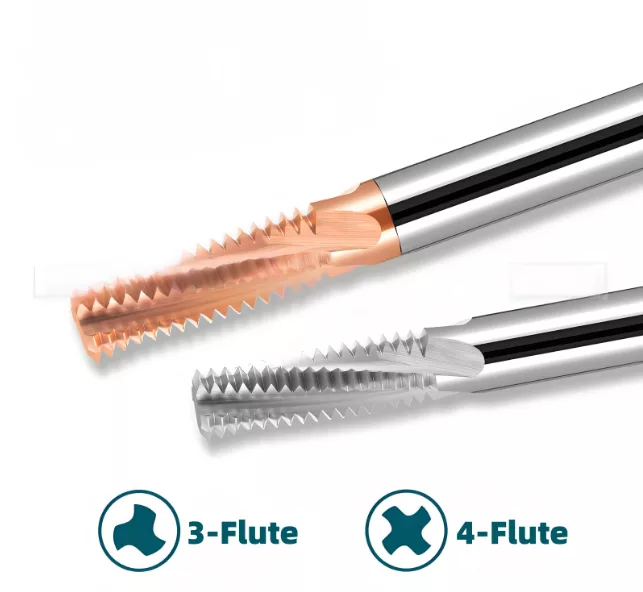

Flute Diameter(mm) | Flute Length(mm) | Overall Length(mm) | Z | mm |
| M3＊0 . 5 | 0.5 | 4 | 2.4 | 6 | 50 | 3 | 2.5 |
| M4＊0 . 5 - M5＊0 . 5 | 0.5 | 4 | 3.2 | 8 | 50 | 3 | 3.5 |
| M3 . 5*0 . 6 | 0.6 | 4 | 2.8 | 7 | 50 | 3 | 2.9 |
| M4＊0 . 7 | 0.7 | 4 | 3 . 15 | 8 . 4 | 50 | 3 | 3.3 |
| M6＊0 .75 | 0 . 75 | 4 | 3.9 | 12 | 50 | 3 | 5.3 |
| M8＊0 .75 | 0 . 75 | 6 | 5.9 | 16 | 57 | 3 | 7.3 |
| M5＊0 . 8 | 0.8 | 4 | 3.9 | 10 .4 | 50 | 3 | 4 . 2 |
| M6*1 . 0 | 1 | 6 | 4.8 | 12 | 57 | 3 | 5 |
| M8＊1 . 0 | 1 | 6 | 5.9 | 16 | 57 | 3 | 7 |
| M10＊1 . 0 | 1 | 8 | 7.9 | 20 | 65 | 3 | 9 |
| M12＊1 . 0 | 1 | 10 | 9.9 | 24 | 70 | 4 | 11 |
| M8＊1 . 25 | 1 . 25 | 6 | 5.9 | 16 . 2 | 57 | 3 | 6.8 |
| M10*1 . 25 | 1 . 25 | 8 | 7.9 | 20 | 65 | 3 | 8.8 |
| M10＊1 . 5 | 1.5 | 8 | 7.9 | 19 . 5 | 65 | 3 | 8.5 |
| M12＊1 . 25 | 1 . 25 | 10 | 9.9 | 24 | 70 | 3 | 10 . 8 |
| M12＊1 . 5 | 1.5 | 10 | 9.9 | 24 | 70 | 4 | 10 . 5 |
| M14＊1 . 5 - M16＊1 . 5 | 1.5 | 12 | 11 . 9 | 30 | 75 | 4 | 12 . 5 |
| M12*1 . 75 | 1 . 75 | 10 | 9.9 | 25 | 70 | 4 | 10 . 2 |
| M14＊2 . 0 -M16＊2 . 0 | 2 | 12 | 11.6 | 30 | 75 | 4 | 12 |
| M18＊2 . 5 -M22＊2 . 5 | 2.5 | 14 | 13 . 9 | 40 | 90 | 4 | 15 . 5 |
| M24＊3 . 0 | 3 | 16 | 15 . 9 | 42 | 100 | 4 | 21 |
