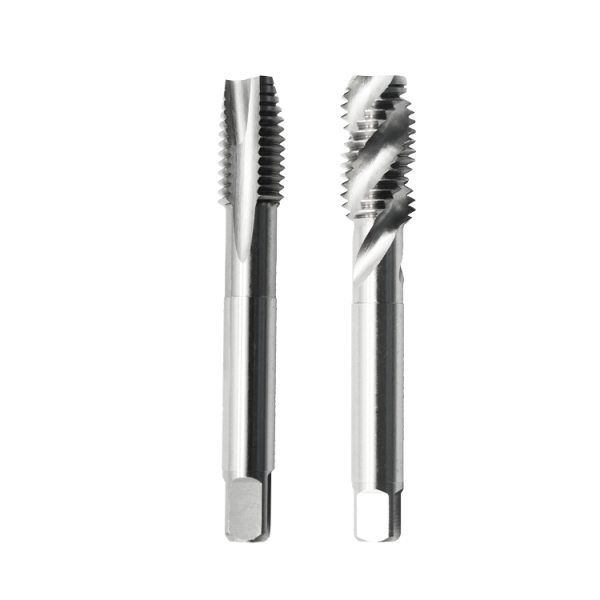

JIS Cobalt Spiral Tap

JIS Cobalt Spiral Tap

Material: HM35 high speed steel
Main target:YAMAWA general-purpose taps in natural colours
For processing: aluminium, non-ferrous metals (except copper and other sticky workpiece), stainless steel 304, 45# steel.

customisable

Product Detail

JIS Cobalt Spiral Tap Specific specification table:

Model	Specification	Recommended threaded bottom hole
CJ010	M1*0.25	0.75
	M1.2*0.25	0.95
	M1.4*0.3	1.1
	M1.5*0.35	1.15
	M1.6*0.35	1.25
	M1.7*0.35	1.35
	M1.8*0.35	1.45
	M2*0.4	1.6
	M2.5*0.45	2.1
	M3*0.5	2.5
	M4*0.7	3.3
	M5*0.8	4.2
	M6*1.0	5
	M8*1.25	6.8
	M10*1.5	8.5
	M12*1.75	10.3
	M14*2	12
	M16*2	14
	M18*2.5	15.5
	M20*2.5	17.5
