HRC56° micro diameter ball nose end mill for aluminum

HRC56° micro diameter ball nose end mill for aluminum

HRC56° Micro Diameter Ball Nose End Mill

Material	Tungsten steel/carbide
Whether to support customization	YES
Hrc	56°
OEM & ODM	OK
Suitable for	aluminum

Product Detail

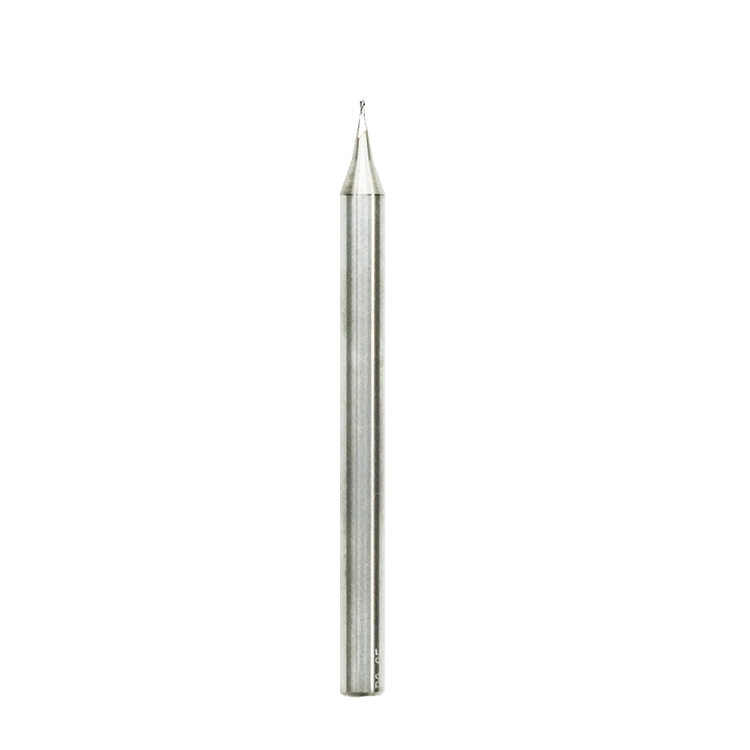

HRC	Coating	picture

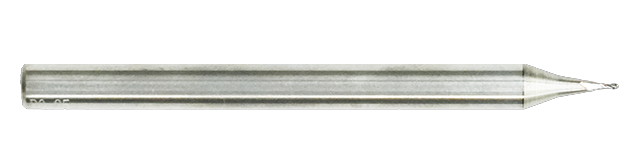

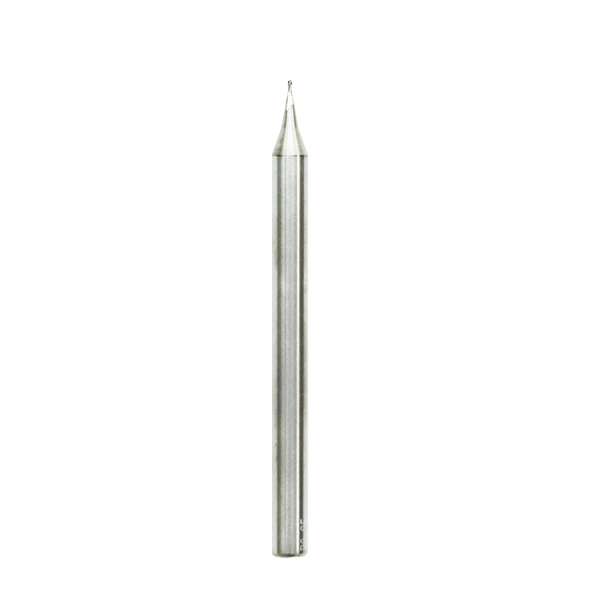

56°	Uncoated

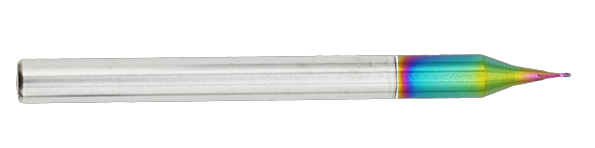

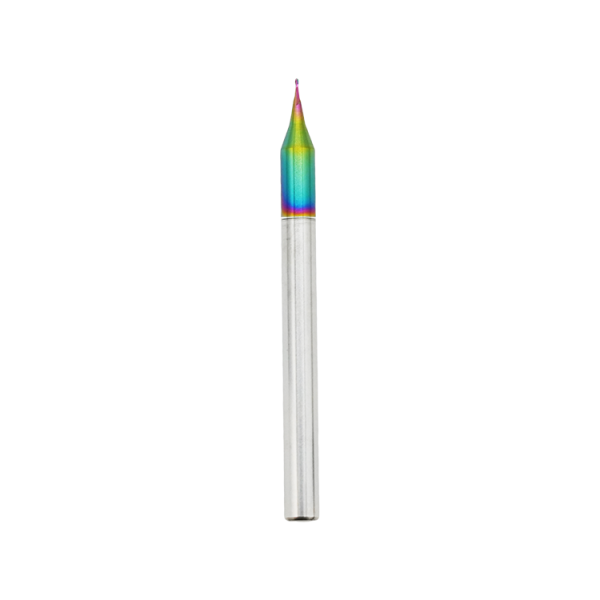

56°	DLC colorful

HRC56° micro diameter ball nose end mill for aluminum specification table：

Specifications	Radius(mm)	Flute Length(mm)	Shank Diameter(mm)	Overall Length(mm)
R0.05	0.05	0.4	4	50
R0.1	0.1	0.8	4	50
R0.15	0.15	1.2	4	50
R0.2	0.2	1.6	4	50
R0.25	0.25	2	4	50
R0.3	0.3	2.4	4	50
R0.35	0.35	2.8	4	50
R0.4	0.4	3.2	4	50
R0.45	0.45	3.6	4	50
