Thread Milling Cutter
/
American UN full teeth...

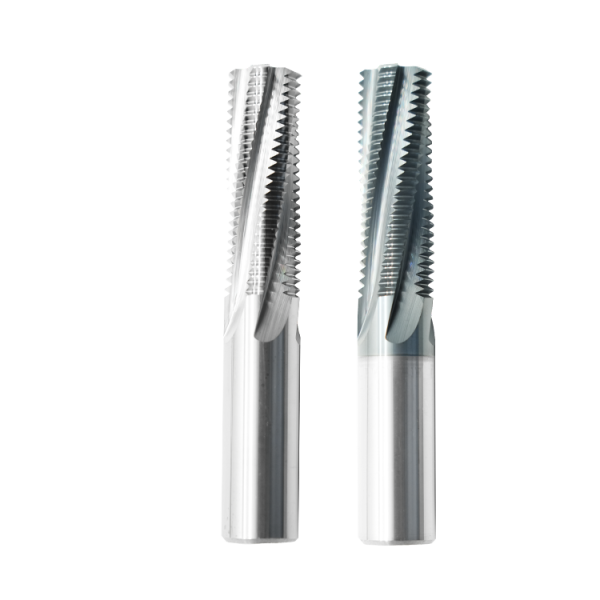

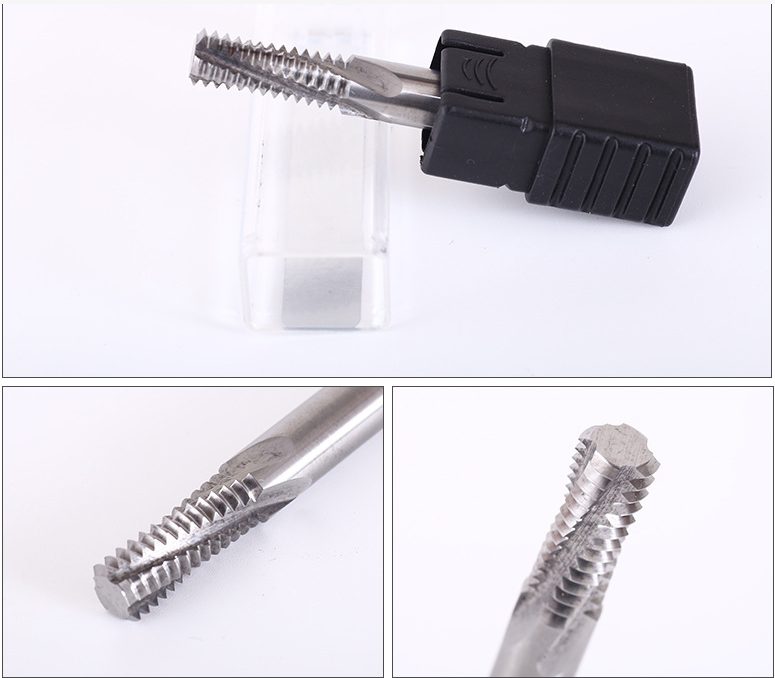

American UN full teeth thread milling cutter

1、Material: tungsten carbide / tungsten steel Durable, complete specifications
2、Support customisation
3、Coating for aluminium: none
4、Coating for steel: nano black

Product Detail

American UN 3teeth thread milling cutter specific specification table:

Thread			Pitch	size				Chip flute	Recommended bottom hole
UNC	UNF	Applicable to UNEF	tpi	Shankr(mm)	Flute Diameter(mm)	Flute Length(mm)	Overall Length(mm)	Z	mm
	NO.8-36		36	4	3	8.5	50	3	3.5
	NO.10-32	NO.12,-3/8"*32	32	4	3.3	17.1	50	3	4
	NO.12-28	7/16",-1/2"*28	28	4	3.8	11.8	50	3	4.6
	1/4.-28	7/16",-1/2"*28	28	6	4.6	12.7	57	3	5.5
		7/16",-1/2"*28	28	10	9.2	22.7	70	4	10.2
NO.10-24		9/16",-11/16"*24	24	4	2.9	10.6	50	3	3.8
NO.12-24		9/16"-11/16"*24	24	4	3.5	11.6	50	3	4.5
	5/16.-24	9/16",-11/16"*24	24	6	5.7	15.9	57	3	6.8
	3/8.-24	9/16",-11/16"*24	24	8	7.4	19.1	65	3	8.5
		9/16",-11/16"*24	24	12	11.9	28.6	75	4	13.2
1/4"*20	7/16",1/2"*20	9/16",-11/16"*24	20	4	3.9	12.7	50	3	5.2
	7/16",1/2"*20	3/4",-1"*20	20	10	8.5	22.9	70	4	9.8
	1/2"*20	3/4",-1"*20	20	10	9.9	25.4	70	4	11.5
		3/4",-1"*20	20	16	15.9	38.1	100	5	17.8
5/16"*18	9/16",5/8"*18	3/4",-1"*20	18	6	5.2	16.9	57	3	6.5
	9/16",5/8"*18	11/16",-1 11/16"*18	18	12	11.3	29.6	75	4	12.8
	5/8"*18	11/16",-1 11/16"*18	18	12	11.9	32.5	75	4	14.5
3/8"*16	3/4"*16	11/16",-1 11/16"*18	16	8	6.7	19.1	65	3	8
	3/4"*16		16	16	15.9	38.1	100	4	17.5
7/16"*14	7/8"*14		14	8	7.6	23.6	65	3	9.3
	7/8"*14		14	20	18.7	44.4	105	4	20.5
1/2"*13			13	10	8.9	25.4	70	4	10.8
9/16"*12	1"-1 1/2"*12		12	12	10.3	29.6	75	4	12.3
	1"-1 1/2"*12		12	20	19.9	50.8	105	5	23.5
5/8"*11			11	12	11	32.3	75	4	13.5
3/4"10			10	16	13.5	38.1	100	5	16.5
7/8"*9			9	20	15.2	45.2	100	4	19.5
1"*8			8	20	17	50.8	105	4	22
